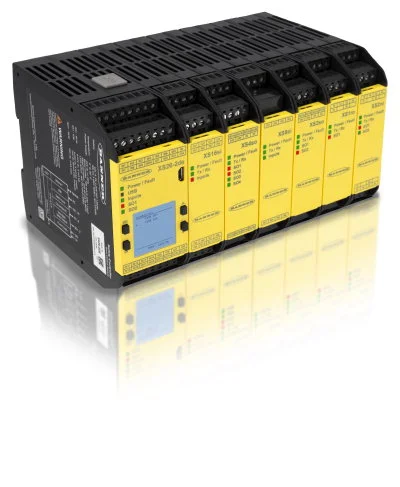

Banner introduces the XS26-2 Expandable Safety Controller

The XS26-2 and associated expansion modules continue the development of a new safety controller platform that began with the SC26-2. With up to eight I/O expansion modules, the XS26-2 platform allows Banner to address larger scale machines that were previously out of reach. The XS26-2 was designed to be easy to use, flexible and efficient.

• Allows up to eight expansion modules
• Configuration software free of charge
• Real-time live display feedback
• Intuitive functional diagram configuration; logic function blocks including AND, OR, XOR, NAND, NOR, SR Flip-flop, RS Flip-flop
• Several preconfigured safety function blocks and configurable safety input attributes
• Controller and input modules allow safety inputs to be converted to status outputs for efficient terminal use
• PNP safety outputs can be split into two single channel status or safety outputs for up to Category 3, PL d per ISO 13849-1
• 64 Virtual outputs (Ethernet version only)
