The new GP4000H Graphical Pendant Station HMIs can be used in more complex applications where you want additional information and controls not easily supplied by traditional simple pendant stations. These 5.7" tethered units have up to 10m cables for freedom of movement and offer a built-in emergency stop and key enable switch.
or more information, click here:
Banner Engineering has introduced their Sure Cross® U-GAGE® K50U Ultrasonic Sensor for use in wireless tank monitoring applications. Optimized for use with Banner’s Q45U Wireless Node, the pair provide a cost effective, plug-and-play solution to monitor levels in mobile or remotely located tanks and totes.
The K50U reliably detects distance from target to sensor in ranges between 300 millimeters (11.8 in) up to 3 meters (118 in), and features built-in temperature compensation for accurate measurements. The sensor features a standard 1¼” NPT connection and can be combined with the optional BWA-BK-006 bracket and Q45U Wireless Node (sold separately) for an easy-to-mount, IEC IP67, NEMA 6P level monitoring solution.
For more information, click here:
The application makes for easy navigation when searching for design considerations for worm jacks, bevel jacks, electrical cylinders and bearings. Simply plug in the desired specifications, and the app will provide a list of products best-suited for the application.
"DesignGuidePro puts the formulas right in the palm of your hand in an easy-to-use mobile app" said Ronald Giovannone, project manager at Nook Industries. "Nook is known for providing engineering support for linear motion applications, this app is one more way that we can help our customers keep moving."
For more information, click here:
Turck introduces the TBPN safety block I/O module, which is the first block I/O module to combine both standard and safety inputs/outputs in a single device. The IP67 hybrid modules can be adapted to the specific signal requirements in the machine, and in doing so, help users to save valuable space and greatly reduce overall system costs of their machines.
On the safety side of the PROFINET/PROFIsafe module, the user has two safety inputs for connecting different safety sensors, such as light curtains or emergency-stop buttons. Two additional safety channels can be used either as safety inputs or outputs. Furthermore, the module offers two channels of internal safety outputs that can be used to remove power to the universal discrete I/O ports as well as to one of the IO-Link ports on the standard side of the block. Safety logic is created using the Turck safety configuration and diagnostics software tool; once programmed, device replacement is simplified by means of a removable memory chip housed under the protective window.
For the standard side of the PROFINET/PROFIsafe module, four universal discrete I/O ports are available for connecting general purpose signals and can switch up to 2 amps. Two of these ports can also be configured as IO-Link masters. In combination with Turck’s I/O hubs, TBIL-M1-16DXP, users can connect up to 32 additional discrete I/O points to the module.
Both the standard channels as well as an IO-Link channel of the TBPN can be disconnected for safety-related applications, considerably simplifying the wiring of auxiliary drives and valve blocks. Turck has developed the robust safety module for an extended temperature range from -40 to +70 °C. The IP65/IP67/IP69K protection types allow use in the most demanding environments.
For more information, click here:
Engineers, OEMs, and integrators have struggled for years to balance the cost of PLCs with their I/O needs, and Turck's new ARGEE technology solves this challenge. ARGEE empowers manufacturers to add logic to compatible I/O devices without a PLC, driving down the cost per I/O point and increasing flexibility in control.
The ARGEE environment is accessible via an HTML5-compatible web browser, which eliminates the need for complex third-party software or licensing that is common with PLCs. Inside the ARGEE environment, users can set condition and action statements to be carried out by the I/O device. The application's intuitive design includes a flow chart - similar to ladder logic - which allows for easy programing by users of all experience levels.
By taking advantage of ARGEE on Turck's multiprotocol Ethernet I/O devices, manufacturers are able to realize a better control solution - field logic controllers.
FLCs benefit small to mid-size OEMs and manufacturers who are looking to add logic without investing in a PLC. FLCs can be used in one of three ways:
For more information, click here:

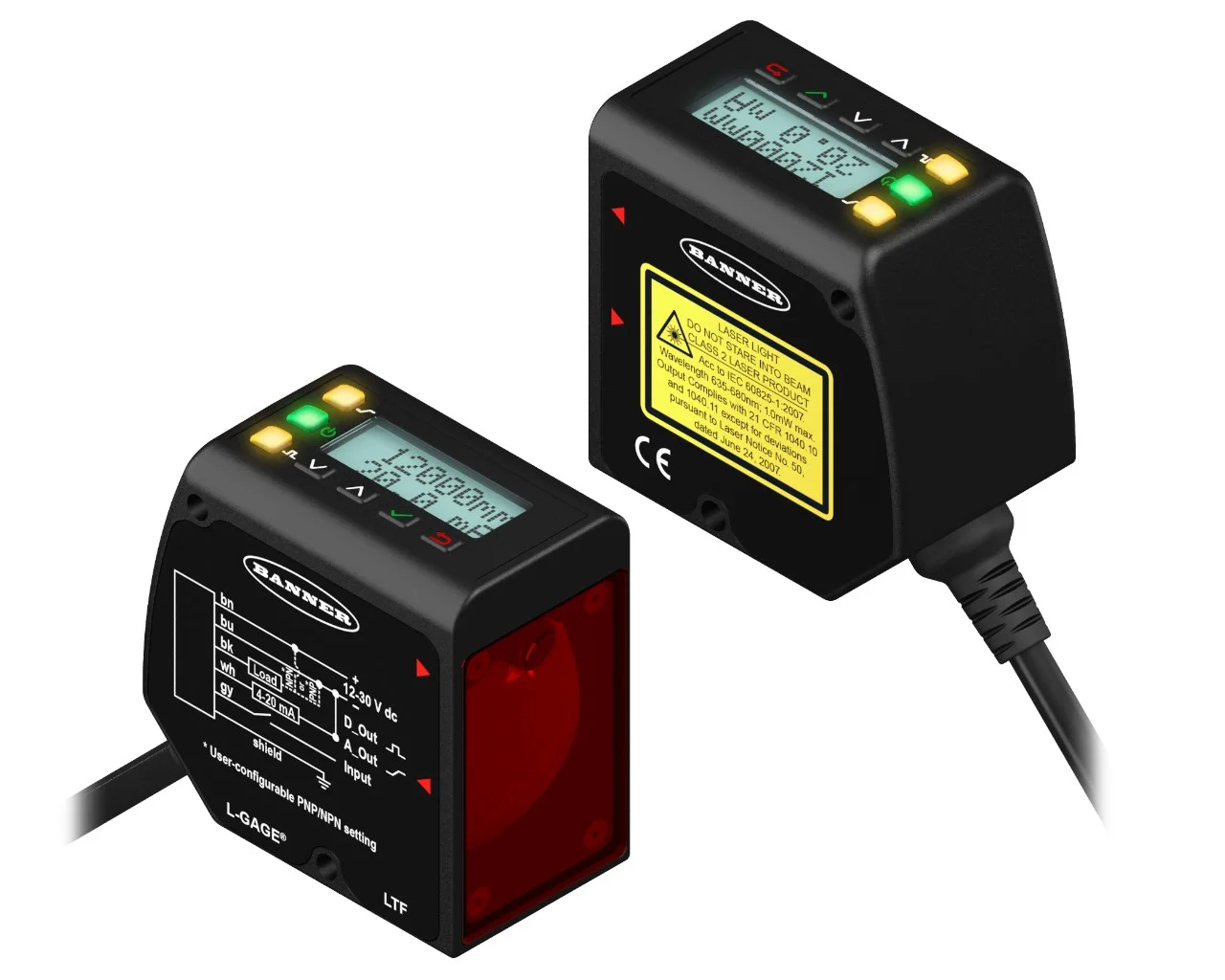

High-performance LTF Series Sensors detect targets regardless of color, material or sheen from up to 12 m away, straight-on or at an angle.
For more information, click here:
Banner Engineering introduces the Sure Cross® DXM100 industrial wireless controller, designed to facilitate communications for Ethernet connectivity or Industrial Internet of Things (IIoT) applications. Available with an internal Sure Cross DX80 Wireless Gateway or a MultiHop Data Radio, this powerful Modbus communications device reliably connects local wireless networks with the Internet and/or host systems.
To satisfy multiple application requirements, the DXM100 controller offers several wired and wireless connectivity options to easily share data between local and remote equipment. The cellular modem option eliminates the need for IT infrastructures to connect remote equipment, while the integrated Sure Cross wireless radio option enables Modbus connectivity to equipment.
For more information, click here:
Banner Engineering introduces its next-generation touch buttons for its industry-recognized K30, K50 and K70 multicolor indicators and pick-to-light sensors. Employing smart electric field sensing, the next-generation touch buttons provide superior immunity to false triggering caused by the buildup of detergents, oils and other foreign materials, as well as exposure to direct water spray.
The K70 is a brand new addition to Banner’s multicolor and pick-to-light sensor family. Featuring a 70 mm touch dome with a 30 mm base, the K70 touch is optimal for larger industrial applications in addition to jobs that require more visibility. The K70 is available in nine color options and one-, two- and three-color models for flexible performance.
The next-generation K30 and K50 offer flexible communication and simplified setup of a single device or multi-point applications. The K50 is available in one-, two- and three-color models, while the K30 is available in one- and two-color models. New FDA models are also available, which are constructed from FDA-grade material and fully encapsulated for use in food and beverage applications.
For more info, click here:
The VE Series Smart Camera is an all-new vision platform from Banner. Building on the success of Banner’s existing vision lines, the VE Series combines ease-of-use (similar to the iVu) with powerful inspection capabilities (like the PresencePLUS). Vision Manager software includes a PC emulator and runtime editing capabilities, providing users with tremendous flexibility in creating and updating inspections. The 2MP imager enables larger fields of view as well as the detection of small objects.
Vision Manager software is designed for ease-of-use to facilitate quick setup and simplify device management. Users of all experience levels, from novice to advanced users, can easily navigate the intuitive user interface, debug capabilities, and logging features with little pre- or post-sales support required.
Higher and lower resolutions and field upgradable software upgrades are planned for release in upcoming months.
For more information, click here.
The HMI cover kits are designed to provide protection for instruments or electronics requiring routine attention or detail. The cover kit features a strong and rigid design, mounting securely to the outside of any enclosure, and makes accessibility to electronic components easy. Available in two sizes, HMI cover kits are UL® recognized and maintain a NEMA 4X seal with the use of a Formed-In-Place (FIP) polyurethane gasket system, and is well-suited for outdoor applications. Multiple cover latching options are also available, including a hinge screw, tamper proof screw, and snap latch models. All are available in solid opaque or polycarbonate clear covers.
or more information, click here.
